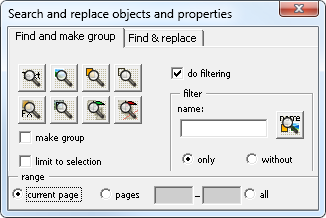

Here you'll find a lot of search for specific shape types buttons and settings. Macros placed on this tab extends the native CorelDRAW® Find and Replace functionality.

FindAndGroup  - text find text objects

With use of this macro you can find any occurrences of texts (both artistic and paragraph) within the given page range or selection and with a defined name (optionally)

find and group - bitmaps find bitmaps

With use of this macro you can find any occurrences of bitmaps (both externally linked and embedded) within the given page range or selection and with a defined name (optionally)

FindAndGroup  - vectors find vectors

With use of this macro you can find any occurrences of basic vector shapes within the given page range or selection and with a defined name (optionally)

find and group - outlines find outlines

With use of this macro you can find any occurrences of non filled outlines within the given page range or selection and with a defined name (optionally)

FindAndGroup  - effects find objects with included effects

With use of this macro you can find any occurrences of  objects which have any kind of special effects (shadow, transparency etc). This is done within the given page range or selection and with a defined name (optionally)

find and group - powerclips find powerclips

With use of this macro you can find any occurrences of PowerClips within the given page range or selection and with a defined name (optionally)

FindAndGroup  - marked to flatten find marked to flatten with background objects

With use of this macro you can find any occurrences of marked to flat with the background objects. This is done within the given page range or selection and with a defined name (optionally)

See more about marking objects to be flatten with the background at optimization and export chapter of this manual...To be detailed

find and group - unmarked to flatten find unmarked to flatten with background objects

With use of this macro you can find any occurrences of unmarked to flat with the background objects. This is done within the given page range or selection and with a defined name (optionally)

See more about unmarking objects from be flatten with the background at optimization and export chapter of this manual...To be detailed

find and group - objects with the given name find any objects with the given name

With use of this macro you can find objects of any type with the name matched to the specified filtering options. This is done within the given page range or selection and with a defined name.

make group

If you tick this options then all occurrences of being find shapes will be grouped together after searching. This option matters especially for use with non limited to selection, but page range based searching

limit to selection

If you tick this options then searching for desired objects will be limited only to the chosen selection range of objects.

do filtering

If this option is enabled, the searching for objects will be limited to only that which meet specific conditions described below.

name

With this input field you can set the desired objects name used in the filtering

only

If the filter only is enabled, filtering will return all objects which having same name as provided name

without

If the filter without is enabled, filtering will return all objects which not having same name as provided name

range

Here you can set the desired range of pages for objects searching, but you must uncheck limit to selection first.
